Railhead Vision Systems

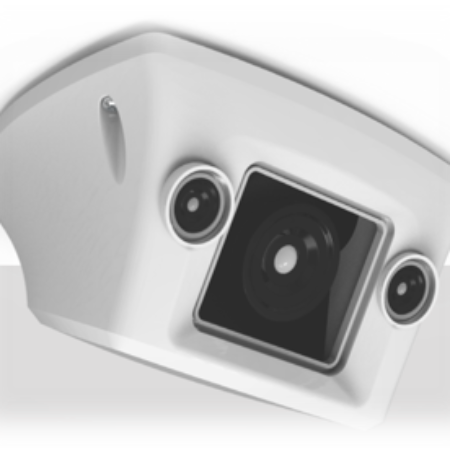

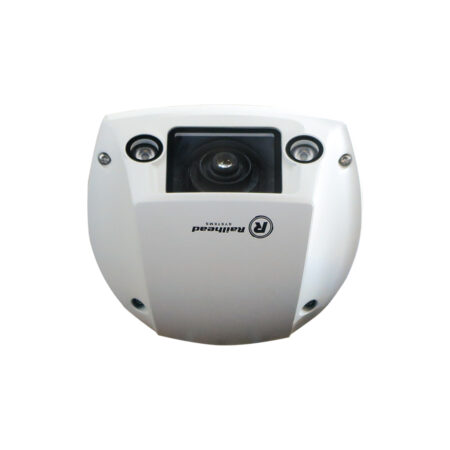

REAR FACING WEDGE CAMERA

Railhead’s High Definition rear facing camera is utilized to capture activities on the back of the locomotive,  capturing the right of way, incidents and railroad signal aspects in the rear view. This view has proven valuable in the past for risk management departments everywhere in capturing rear view incidents in addition to the forward-facing camera, enabling accident investigators, claims and legal department to see a more detailed view of the incident.

Additional Information

Features

Features and Specifications

  • H.265 compression
  • Reduced footprint and profile
  • New design protects front glass
  • Available with 100° and 20° FOV
  • IP69 environmental rating, IK8 impact rated
  • Built-in heater for better cold weather performance
  • Tempered glass for superior clarity, safety and reduced scratching
  • Improved, configurable and more powerful IR sensors and LEDs
  • IR’s located external to the viewing glass for reduced reflections
  • NDAA 889 compliant
  • POE Compliant

Auto Connect and Configuration

Specifications

  • Low-Light: Yes
  • Vandal-Resistant: Yes
  • High Resolution, PoE: Yes
  • Auto-Connect: Yes
  • Varifocal Lens: Yes
  • Resolution: F-HD (1920 x 1080), HD (1280 x 720), W-D1 (864 x 480), QHD (640 x 360), W-CIF (432 x 240)
  • Field of View (FOV): H: 35-95 degrees; V: 20-51 degrees
  • Min. Illumination(Color): 0.15 Lux @ F 1.2
  • Min. Illumination (B&W): 0.01 Lux @ F 1.2
  • S/N Ratio: >52dB
  • CCD: 1/2.7" CMOS
  • Dimension (WxHxD): 4.06" x 3.63" x 6.77"
  • Additional Features: Optional Tempered Glass
  • Outdoor Rating: IP66
