RH-TL2020

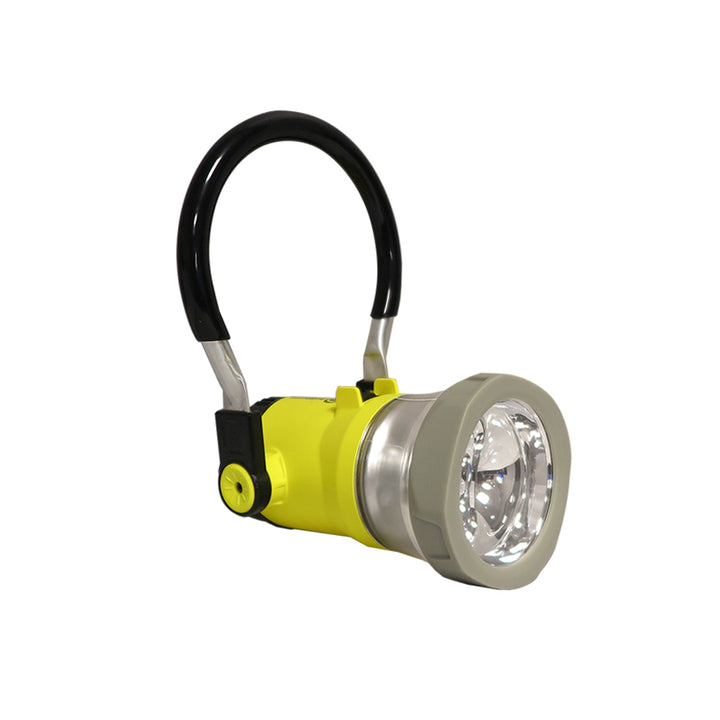

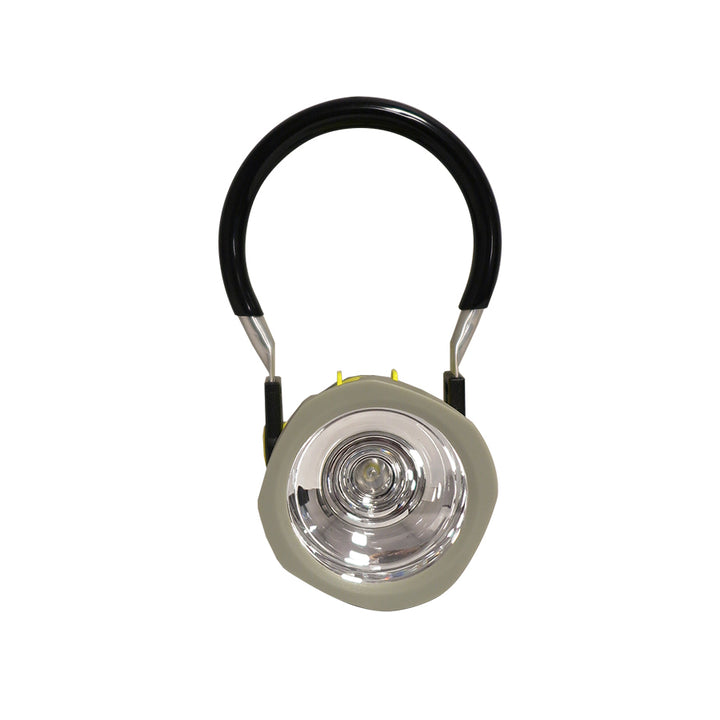

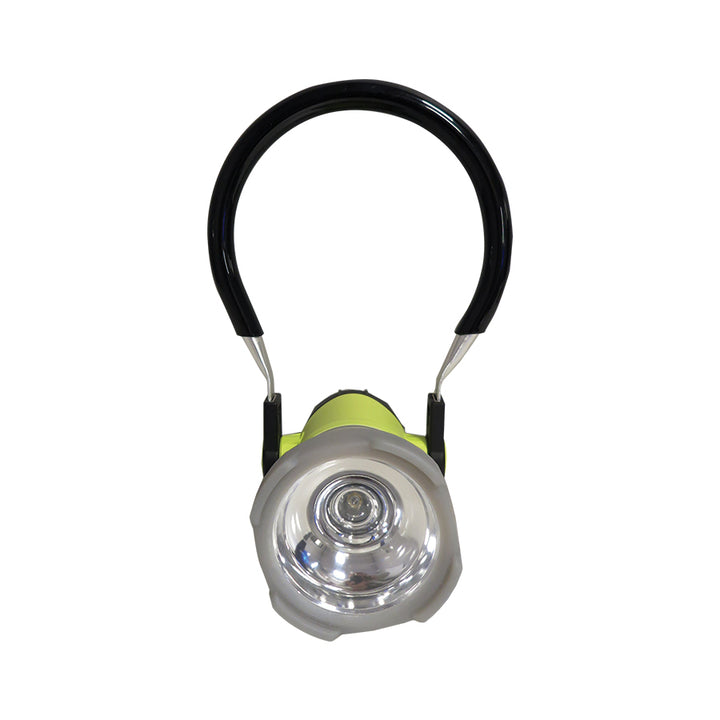

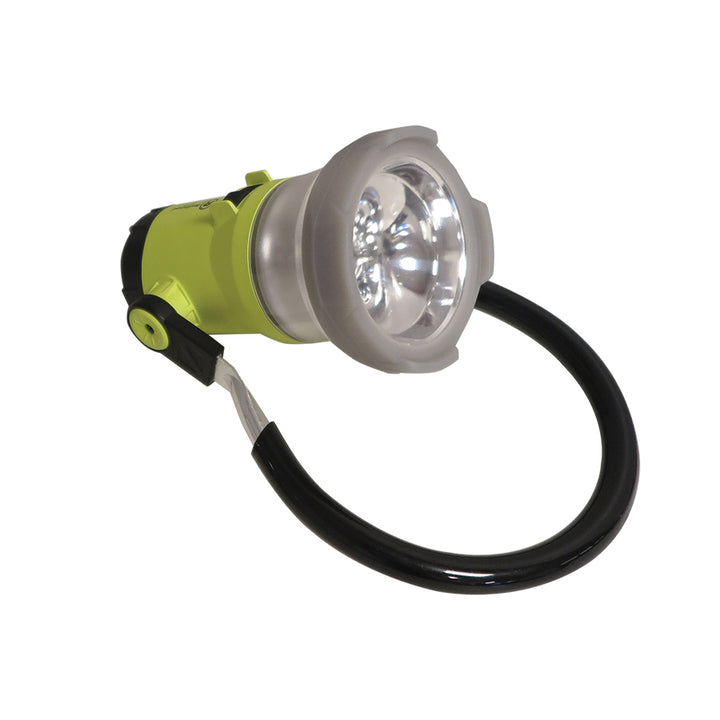

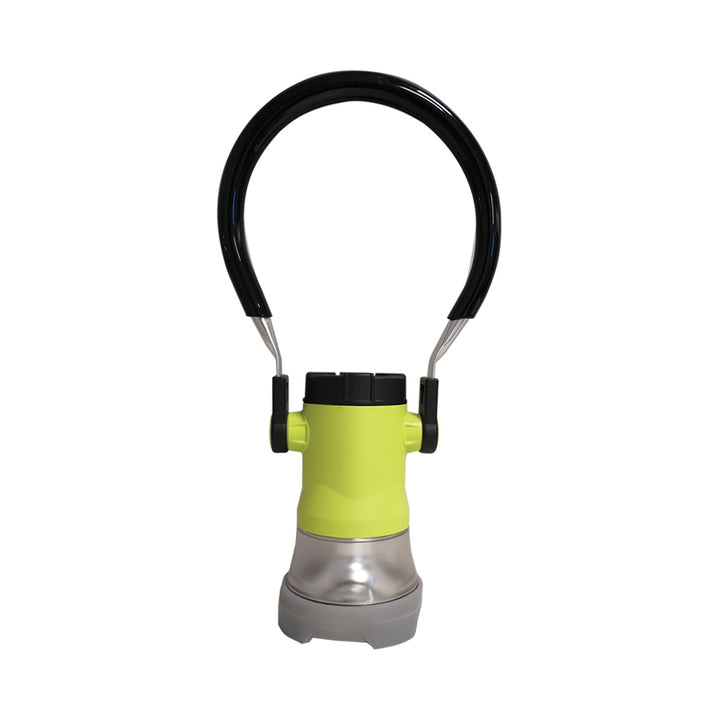

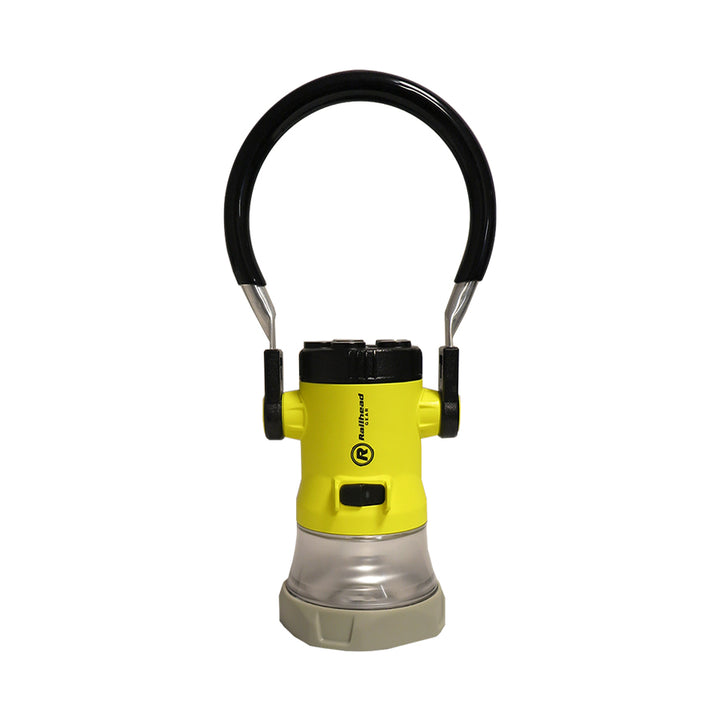

Trainman Lantern — Patented Break-Away Handle, 650 lm, IP66, 50 hr runtime, 2,667 ft Beam

Everything a trainman’s lantern should be — lighter, safer, and built specifically for railroad service.

Rail work is full of snag points: ladders, grab irons, tight clearances, and rolling equipment. Railhead’s patented breakaway handle is designed to separate under abnormal load, allowing the lantern to come free instead of becoming a dangerous tether to the worker.

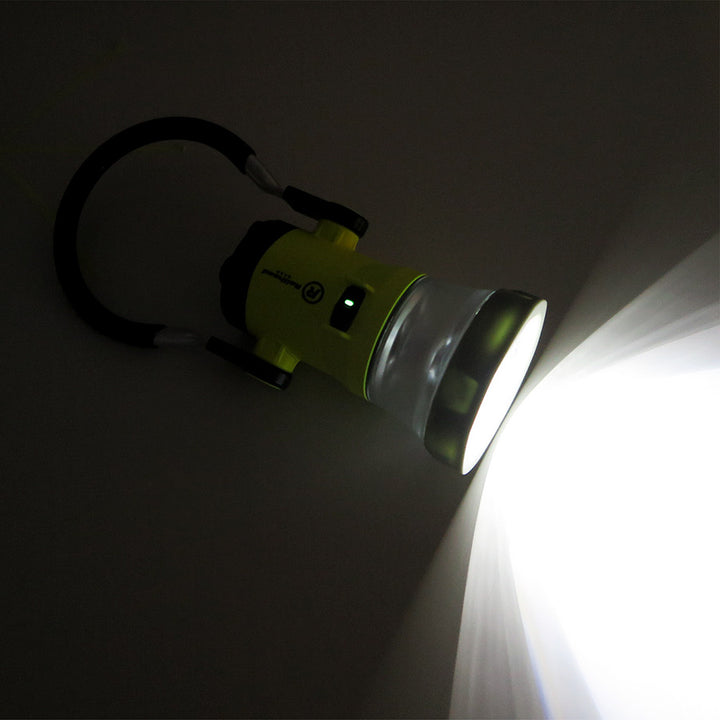

Built for long shifts and harsh conditions, the lantern delivers 650 lumens with an industry-leading 2,667 ft beam throw, more than 50 hours of runtime, and an IP66-rated housing. An 8-position ratcheting handle provides fast, repeatable aiming, while individually secured magnets provide dependable attachment to steel equipment without relying on glued joints.

A photoluminescent rubber bezel remains visible after the lights go out, and an integrated battery indicator keeps crews informed throughout the shift.

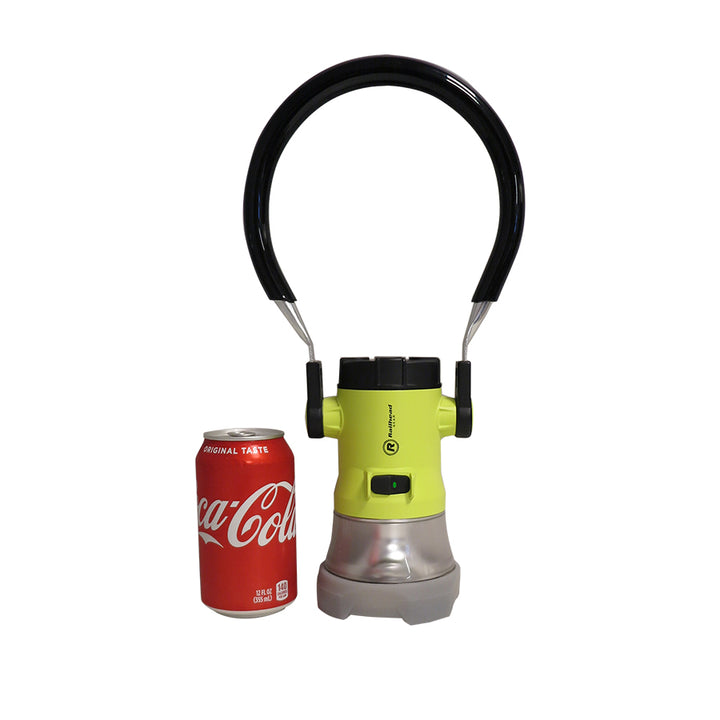

Roughly 35% lighter than a standard 6 V lantern, Railhead delivers railroad-ready safety without sacrificing performance.

Patented design. Breakaway handle. Photoluminescent rubber bezel. Industry-leading beam throw. Magnetic base.

Additional Information

Features

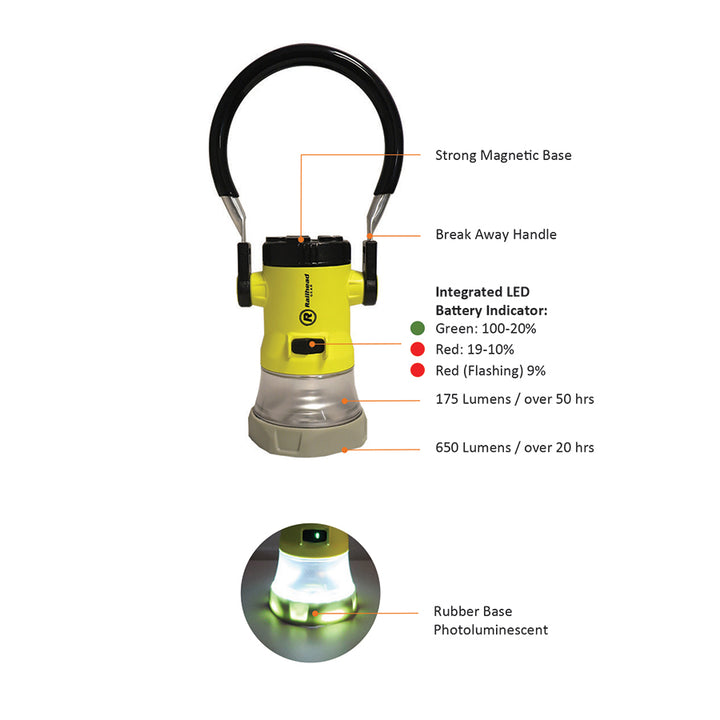

  • • Patented breakaway handle is designed to separate under abnormal load, so a snagged lantern comes free instead of tethering the worker
  • • 2,667 ft (813 m) of throw, the longest in the industry, with spot, flood, and combined modes

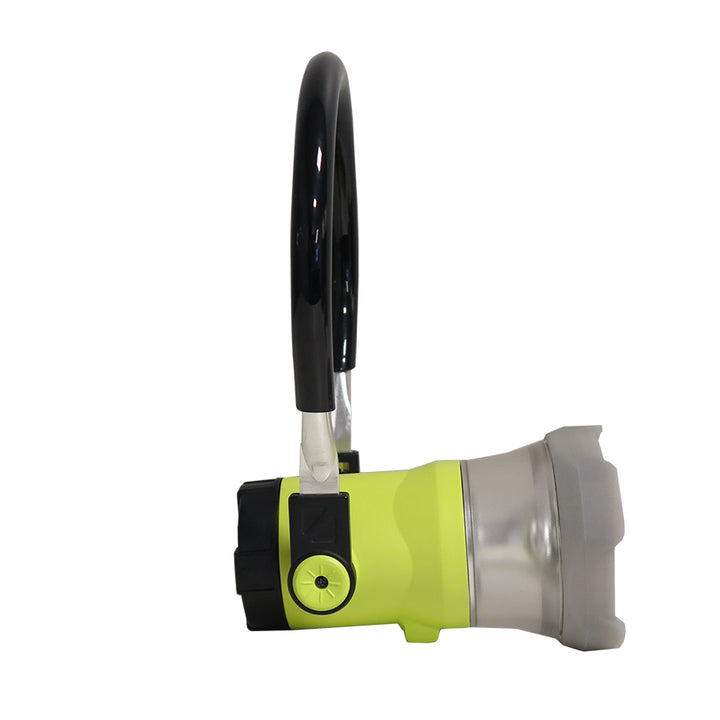

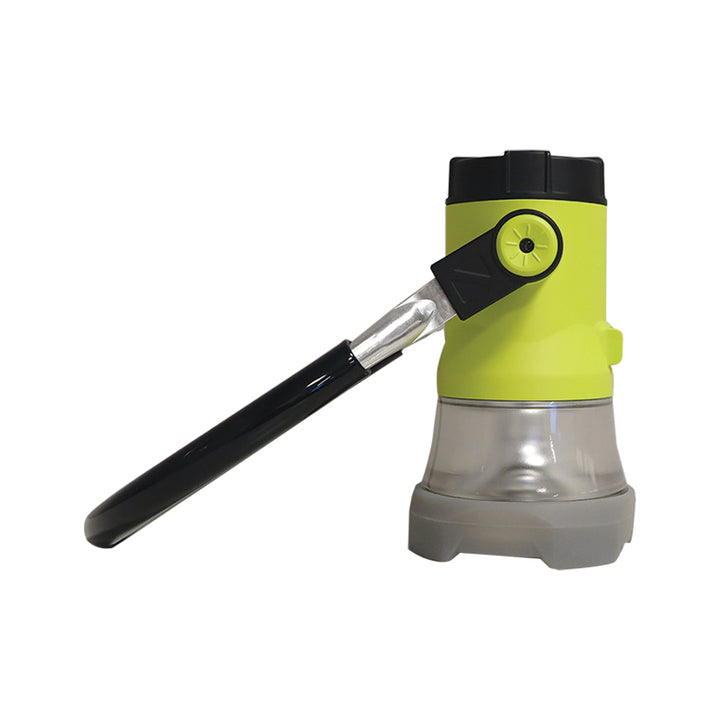

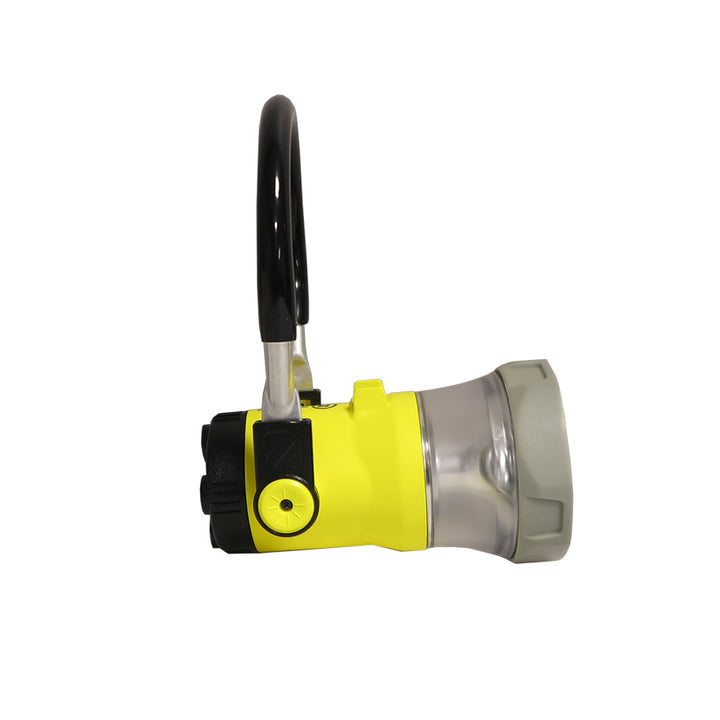

  • • 8-position ratcheting handle aims the beam fast and repeatably, one-handed

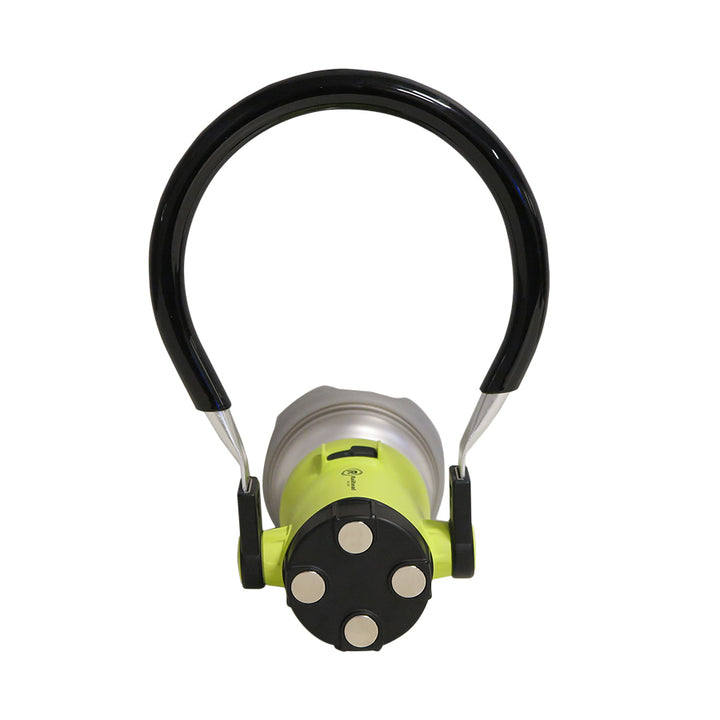

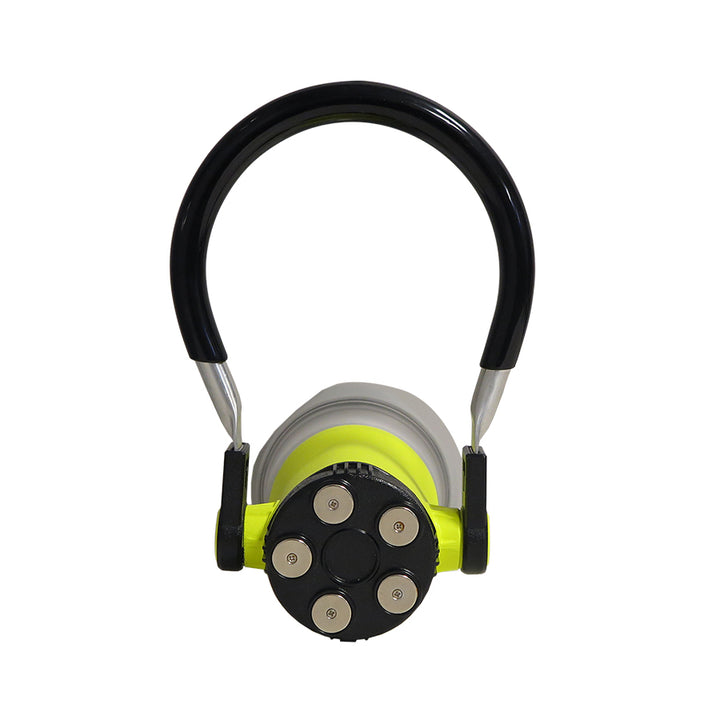

  • • Screwed-on 30 lb magnetic base — holds through brittle-cold winters where glued magnets detach and stay stuck to the equipment

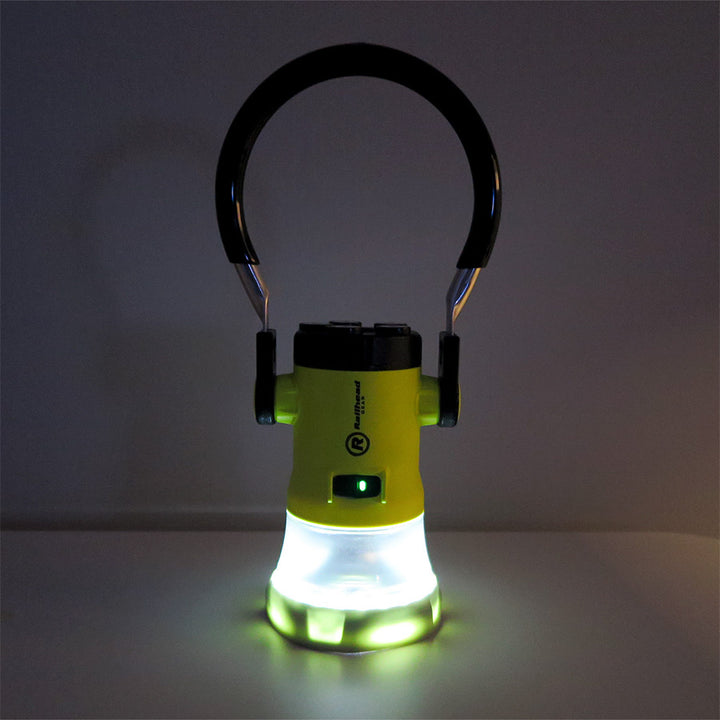

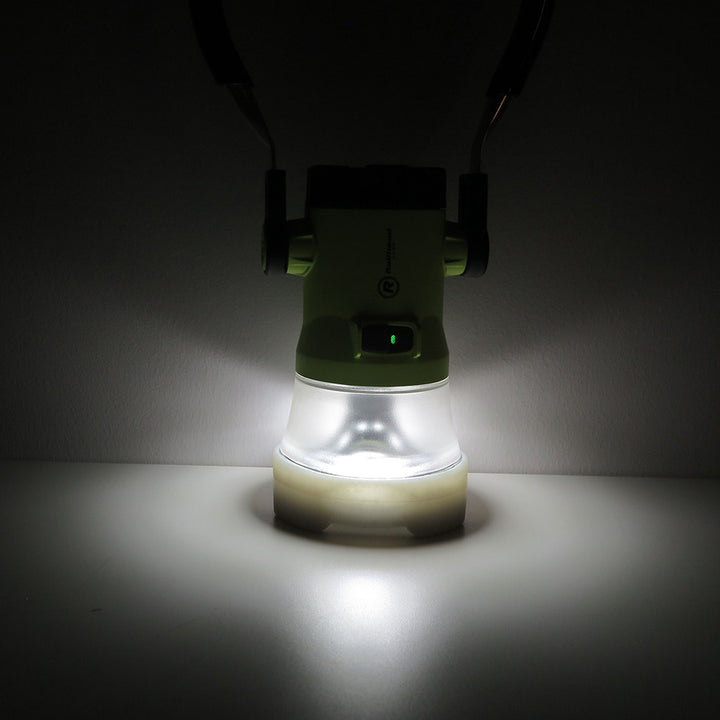

  • • Photoluminescent rubber base glows in the dark — the lantern is findable after it is set down
  • • Integrated battery indicator; 50+ hr of runtime on low spot
  • • Roughly 35% lighter than a standard 6 V lantern
  • • Sealed to IP66 (dust-tight, water-resistant)
  • • Drop tested to 6.6 ft (2 m)

Material


  • Housing: High Impact ABS and polycarbonate
  • Base: Photoluminescent rubber; individually screwed-on 30 lb pull magnet (not glued)
Specifications

Specifications


    • Brightness: High Spot: 550 lm / Low Spot: 175 lm / Flood: 150 lm / High+Flood: 650 lm / Low+Flood: 300 lm (ANSI/PLATO FL1)
    • Run Time: High Spot: 20 hr 30 mins / Low Spot: 50 hr 40 mins / Flood: 43 hr / High+Flood: 13 hr / Low+Flood: 20 hr 40 mins
    • Beam Distance: High Spot: 2,618 ft (798 m / 159,440 cd) / Low Spot: 1,400 ft (427 m / 46,160 cd) / Flood: 23 ft (7 m / 34 cd) / High+Flood: 2,667 ft (813 m / 165,920 cd) / Low+Flood: 1,377 ft (420 m /44,170 cd)
    • Modes: High Spot / Low Spot / Flood / High+Flood / Low+Flood
    • Ingress Protection: IP66 (dust-tight, water-resistant)
    • Magnet: 30 lb pull, individually screwed-on (not glued)
    • Battery: (3) C cell alkaline (not included)
    • Weight: 1.51 lb (with magnetic base and batteries)
    • Impact: Drop tested to 6.6 ft (2m)
    • Requires (3) C-cell alkaline batteries, not included.
