RH-TL2022-R-2A

Trainman Lantern Rechargeable Kit — 6 Batteries, Charging Base, 2 A Adapter Trainman Lantern — Patented Break-Away Handle, 650 lm, IP66, 50 hr runtime, 2,667 ft Beam

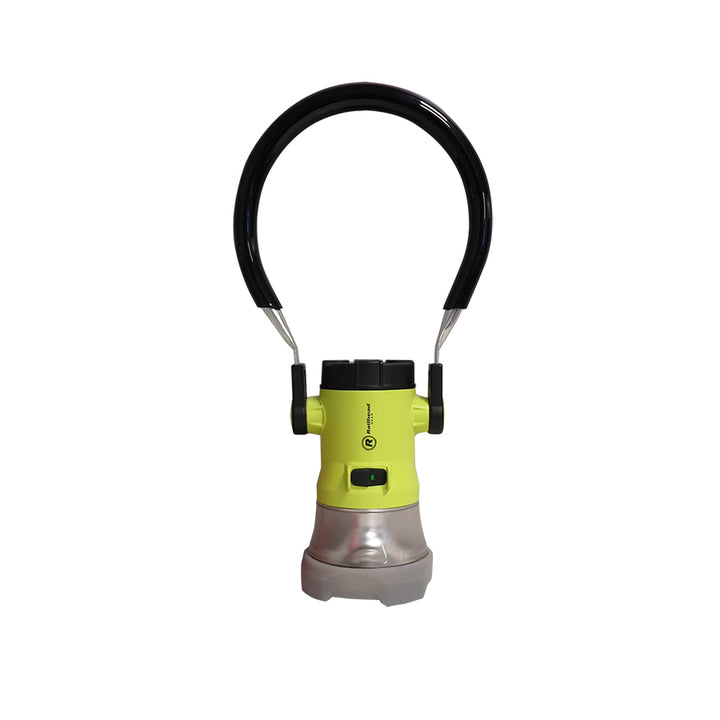

Everything that makes Railhead’s patented trainman’s lantern safer and easier to use — now with a rechargeable power system.
Rail work is full of snag points: ladders, grab irons, tight clearances, and rolling equipment. Railhead’s patented breakaway handle is designed to separate under abnormal load, allowing the lantern to come free instead of becoming a tether to the worker.

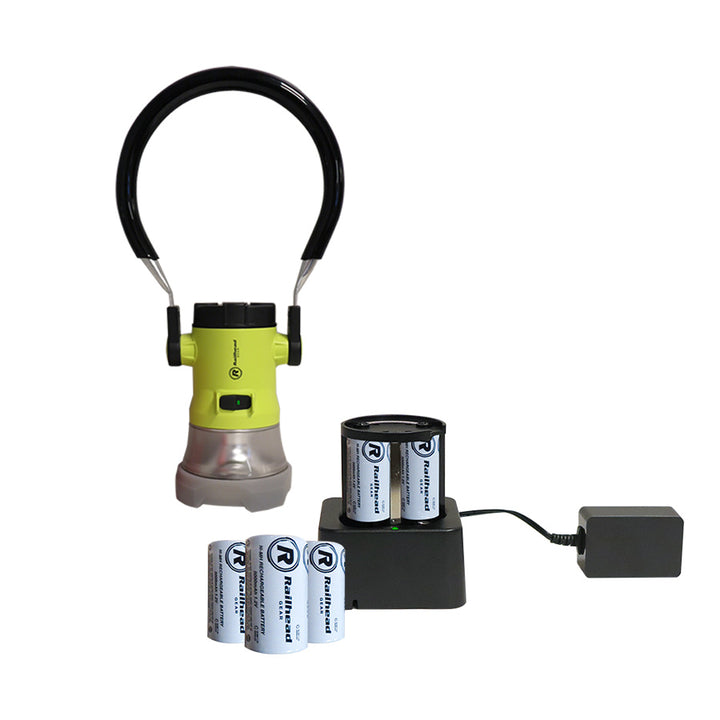

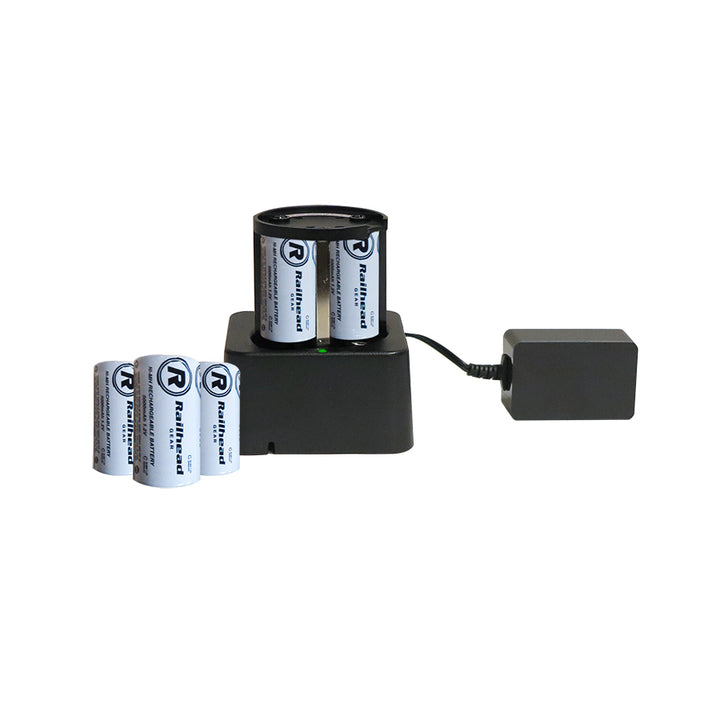

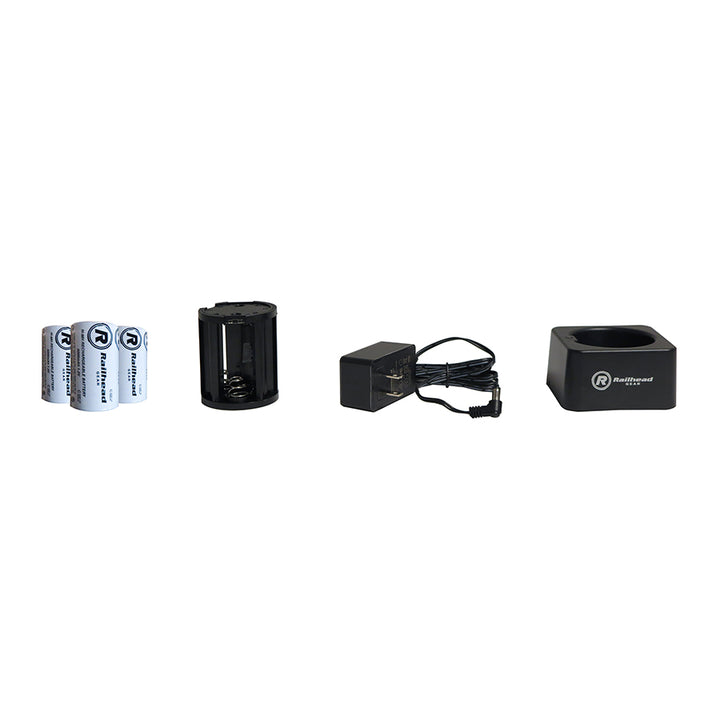

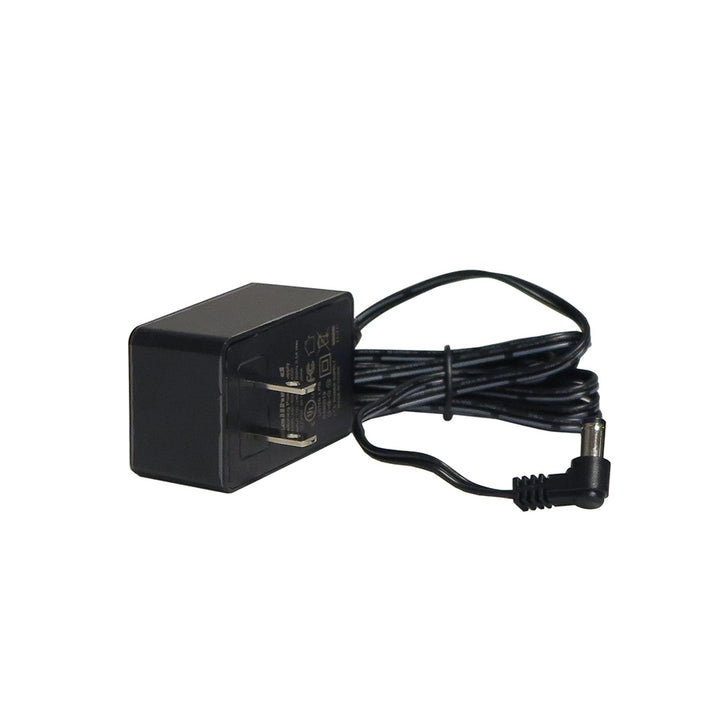

The rechargeable version adds six rechargeable C-cell batteries, two battery cages, a charging base, and 2A wall charger while retaining compatibility with standard alkaline C-cell batteries. The drop-and-go charging dock eliminates the need to remove individual batteries.
With 650 lumens, an industry-leading 2,667 ft beam throw, 50+ hours of runtime, an IP66-rated housing, magnetic base, 8-position ratcheting handle, photoluminescent rubber bezel, and integrated battery indicator, it delivers the same railroad-built performance with the convenience of rechargeable power.
Roughly 35% lighter than a standard 6 V lantern, it is built to reduce battery waste, simplify charging, and keep crews ready for the next shift.
Patented design. Breakaway handle. Rechargeable power. Photoluminescent rubber bezel. Industry-leading beam throw. Magnetic base.

Additional Information

Features


  • • Approximately $1,200 saved in C-cell purchases over 2 years (figure reported by transportation departments)

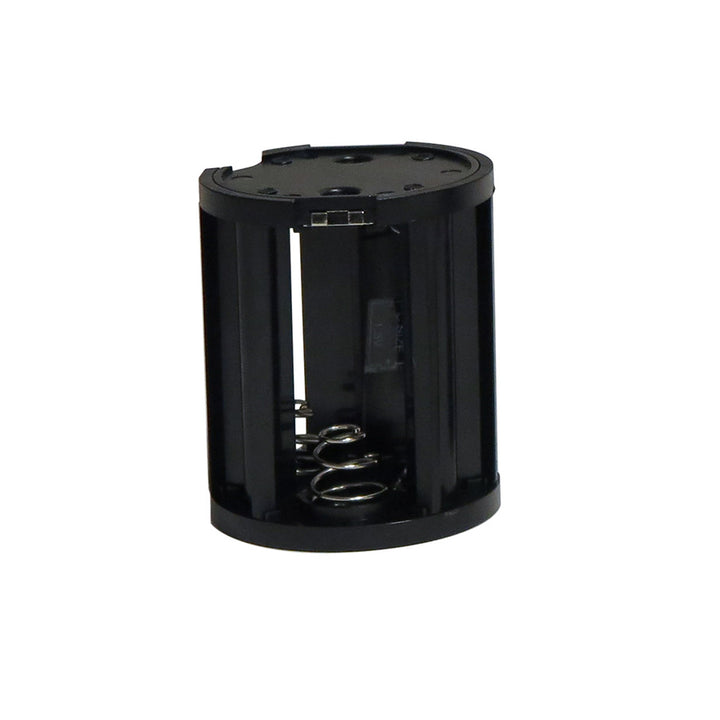

  • • Drop-in battery cage charges one set of three cells at a time — no handling individual batteries

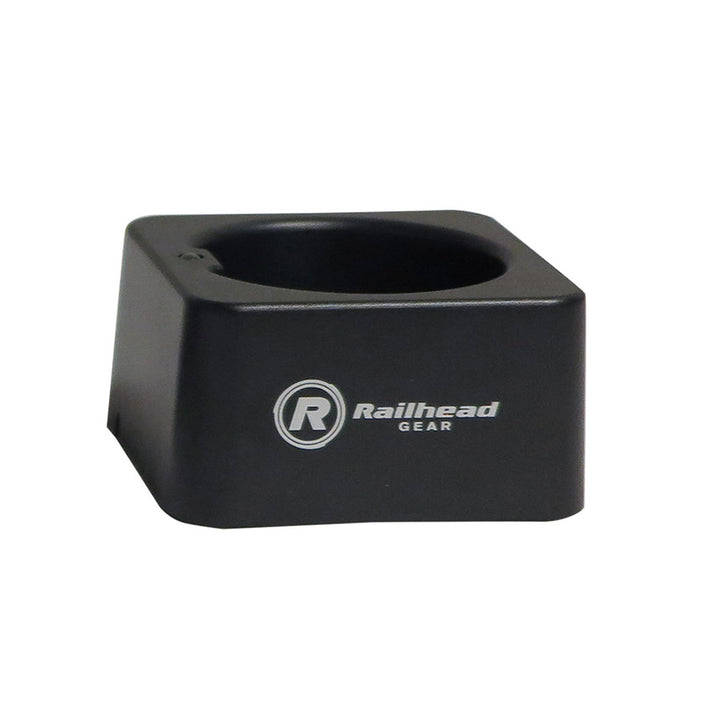

  • • LED charge indicator on the charging base
  • • The lantern still accepts standard C-cell alkalines — nothing is stranded during the transition
  • • Patented breakaway handle is designed to separate under abnormal load, so a snagged lantern comes free instead of tethering the worker
  • • 2,667 ft (813 m) of throw, the longest in the industry, with spot, flood, and combined modes
  • • 8-position ratcheting handle aims the beam fast and repeatably, one-handed
  • • Screwed-on 30 lb magnetic base — holds through brittle-cold winters where glued magnets detach and stay stuck to the equipment
  • • Photoluminescent rubber base glows in the dark — the lantern is findable after it is set down
  • • Integrated battery indicator; 50+ hr of runtime on low spot
  • • Roughly 35% lighter than a standard 6 V lantern
  • • Sealed to IP66 (dust-tight, water-resistant)
  • • Drop tested to 6.6 ft

Material


  • Lantern: High Impact ABS and polycarbonate
  • Base: Photoluminescent rubber, 30 lb pull magnet (RH-TL2020)
Specifications

Specifications


    • Brightness: High Spot: 550 lm / Low Spot: 175 lm / Flood: 150 lm / High+Flood: 650 lm / Low+Flood: 300 lm (ANSI/PLATO FL1)
    • Run Time: High Spot: 20 hr 30 mins / Low Spot: 50 hr 40 mins / Flood: 43 hr / High+Flood: 13 hr / Low+Flood: 20 hr 40 mins
    • Beam Distance: High Spot: 2,618 ft (798 m / 159,440 cd) / Low Spot: 1,400 ft (427 m / 46,160 cd) / Flood: 23 ft (7 m / 34 cd) / High+Flood: 2,667 ft (813 m / 165,920 cd) / Low+Flood: 1,377 ft (420 m /44,170 cd)
    • Modes: High Spot / Low Spot / Flood / High+Flood / Low+Flood
    • Ingress Protection: IP66 (dust-tight, water-resistant)
    • Weight: 1.51 lb (with magnetic base and batteries)

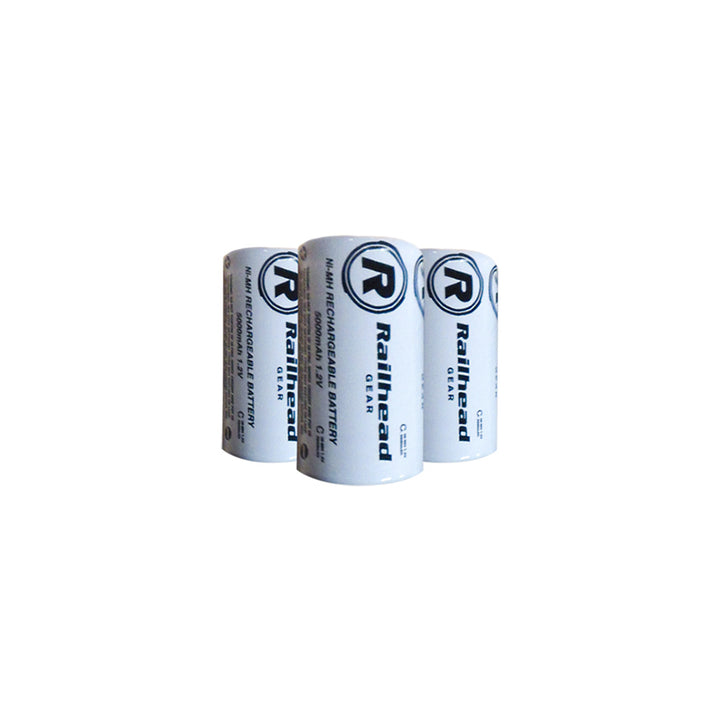

    • Battery: (3) rechargeable C cells installed in the lantern; (6) supplied in the kit as two sets of three
    • Impact: Drop tested to 6.6 ft (2m)
