Permanent-Mount Hinged Red Flag Kit — Stop Men at Work, 12×12 HIP Reflective, M747R-LED2 Photocell Light & Batteries

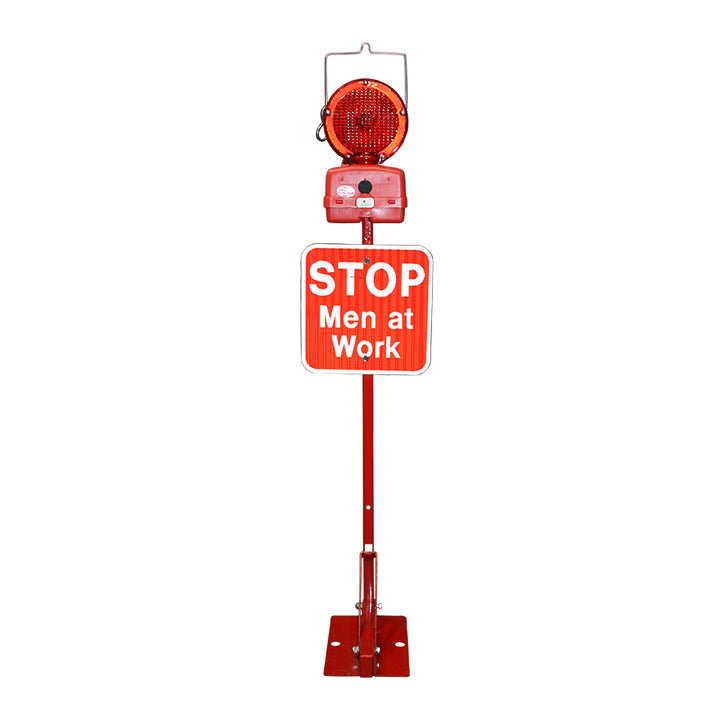

The KE-125-KR is the red version of Railhead's permanent-mount flag kit: the hinged KE-125 base, a red 12 × 12 in Stop Men at Work sign, an M747R-LED2 bi-directional photocell light, and two batteries. It stands where protection is needed and lays flat to the ground when it is not, so there is nothing to find, carry out, or bring back.
On the railroad, red and blue signal different crews: red is typically used to protect track workers and to mark the end of in-service track, while blue protects mechanical workers. Many industrial customers use either color to protect their employees, so the KE-125-KR lets you match whichever standard your site follows.
The integrated photocell turns the light on at dusk and off at dawn, and the light runs in flashing or steady mode. The sign carries 3M High Intensity Prismatic sheeting with a premium protective overlay that resists fading, discoloring, cracking, and peeling.
Features
- • Complete kit: permanent-mount base, red Stop Men at Work sign, M747R-LED2 light, and (2) batteries
- • Red protection for track workers, or to mark the end of in-service track
- • 24/7 protection with nothing to find, carry, or remember
- • Integrated photocell turns the light on at dusk and off at dawn
- • Bi-directional M747R-LED2 with flashing and steady modes
- • 60-day battery life; up to 5,000 hr with CELAIR 45 air-alkaline batteries
- • 3M High Intensity Prismatic sign with protective overlay
- • One moving part, no springs; lays flat to the ground
- • Welded positive-locking latch operates with a boot — no bending down
- • Rear shock absorber protects the light in the down position and keeps it off the ground
- • Base plate accepts two spikes or bolts to a tie
- • Entire unit is powder-coated; lower mounting option available
- • Optional drop chain for easy lay-down (KE-125CHAIN)
- • Custom signs and other languages available
- • Sign and stand made in the USA. Light made in China.
Material
- Post and Base: Powder-coated steel
- Sign: 3M High Intensity Prismatic (HIP) sheeting with premium protective overlay film
- Light: M747R-LED2 bi-directional LED barricade light
Specifications
- Overall Height: 4 ft 8.5 in (56.5 in) fully assembled
- Weight: 15 lb fully assembled
- Sign Size: 12 in × 12 in
- Sign Legend: Stop Men at Work
- Sign Color: Red
- Sign Sheeting: 3M High Intensity Prismatic (HIP) with premium protective overlay
- Base Color: Red
- Post Material: Powder-coated steel
- Hinged: Yes, with rear shock absorber
- Mounting: Permanent; base plate accepts two spikes or bolts to a tie
- Light: M747R-LED2, 2 LEDs, flashing / steady
- Light Runtime: 60 days in flash or steady mode; up to 5,000 hr with CELAIR 45 air-alkaline batteries
- Visibility: Up to 1 mi
- Photocell: Integrated
- Battery: (2) 6V, included in kit
- Chain: Optional (KE-125CHAIN)
- Country of Origin: Sign and stand: USA; Light: China
