PAWS
Railhead Proximity Alert Warning System
PROBLEM
Pedestrians and moving vehicles share busy workplaces where blind spots and intersections can make approaching traffic difficult to notice.
RAILHEAD ADVANTAGE

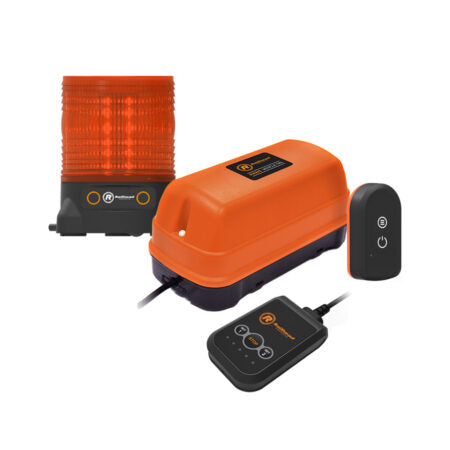

PAWS uses compatible ultra-wideband tags with wearable, in-vehicle and fixed-area warning devices. Configure vehicle-to-pedestrian, vehicle-to-vehicle, vehicle-to-zone or intersection alerts using the appropriate kits and components.
CUSTOMER IMPACT
Adds proximity warnings at the pedestrian, vehicle or facility location to support awareness and site traffic procedures.
Additional Information
Features
- • UWB proximity alerts
- • Vehicle and pedestrian tags
- • Operator light/voice indicator
- • Zone strobe and connected passive lights
- • Intersection indicator, floor spot and voice warning
- • Optional amplifier/speaker
- • Optional external device interface
- • Pedestrian tag: vibration, audio or combined mode
Material
- Construction/material grades require component-specific confirmation. See PAWS Guide for individual device entries.
Specifications
Specifications
- VTAG / PTAG / ZTAG catalog maximum detectable distance: 98.5 ft; not a guaranteed warning radius.
- VTAG, AIND, ZTAG: nominal DC 12/24V; operating DC 9–32V; −22 to +185 °F.
- PTAG: 950mAh 3.7V Li-polymer; Micro USB Type B 5V/1A; typical 30 hr under catalog condition.
- CZT: catalog distance 3.3 ft requires confirmation.
- See PAWS Guide for device-specific specifications.
