KE-MCC

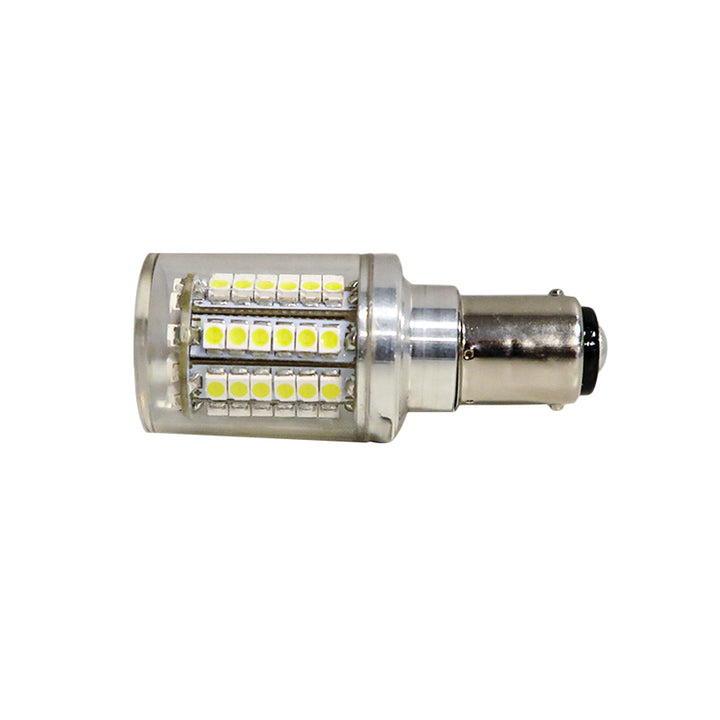

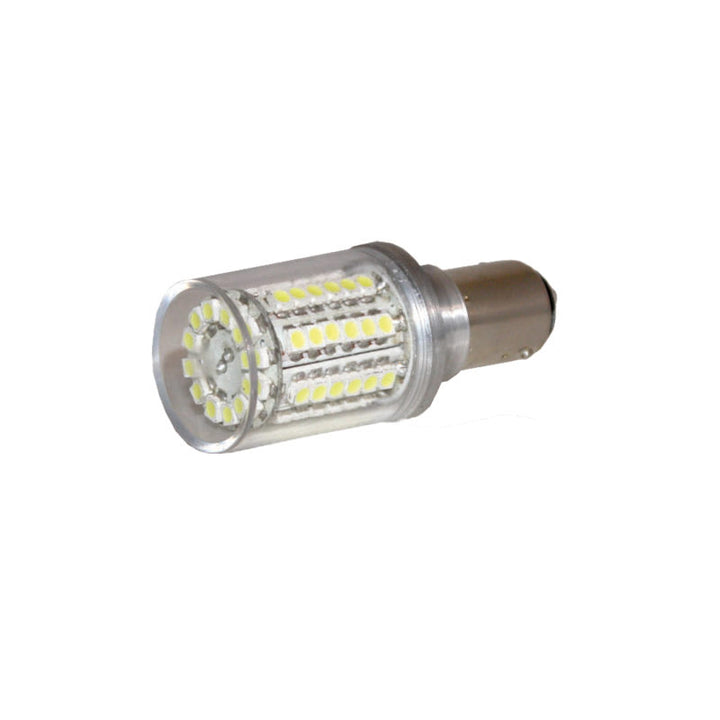

Mini Corncob Bayonett Style Covered long neck

Extremely rugged internal construction built to conform to AAR LED LAMP SPEC requirements: This lamp operates under the vibration of 2.5G at 2 to 44 hertz (any direction) and shock of 3G for 0.015 seconds (any direction). Covered protection for workers, LEDs, and heatsinked at the base for long life. ASK ABOUT CUSTOM VOLTAGES
Additional Information

Features


  • EMI quiet / does not cause radio interference
  • Eliminates cut and burn injuries
  • Anti-theft DC circuit (will not work on household power)
  • Lead and Mercury-free
  • 3 Year Warranty

Material


  • N/A
Specifications

Specifications


  • Operating Voltage : 75VDC (or custom)
  • Rated Life : 50,000 hours
  • Color Temperature : 6000K
  • Brightness : 300 lumens
  • Power Consumption : 3.2W
  • Base Material : Aluminum Alloy, PVC Cover
  • Operating Temp : '-40˚F to +90˚F
  • Base : BA15D
  • Size : 1” x 1” or 1” x 2.5” available
  • Case Quantity : 100
