KE-125-1

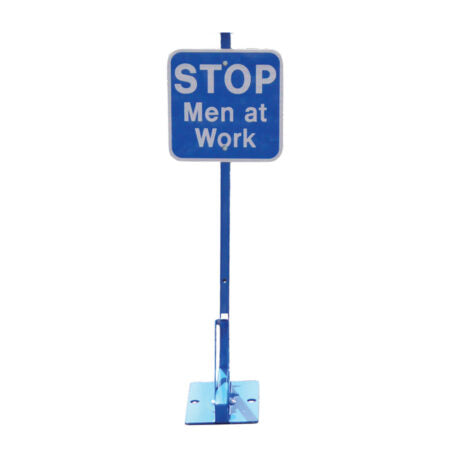

Permanent-Mount Hinged Blue Flag — Stop Men at Work, 12×12 HIP Reflective

The KE-125-1 is a permanent hinged assembly. It stands where the protection is needed and folds flat to the ground when it is not, on a welded positive-locking latch a crew member can work with a boot without bending down. A rear shock absorber cushions the assembly in the down position. One moving part, no springs.

The 12 × 12 in sign carries 3M High Intensity Prismatic sheeting with a protective overlay that resists fading, cracking, and peeling. Custom signs and other languages available. For 24/7 protection with a light, see the kit versions: KE-125-K (M747 battery light) and KE-125-KS (M900 solar light).

Additional Information

Features


  • • Complete kit: permanent-mount hinged base and 12 × 12 in Stop Men at Work sign (light sold separately)
  • • Permanent mount means 24/7 protection with nothing to find, carry, or remember
  • • Welded positive-locking latch operates with a boot — no bending down to raise or lower
  • • Rear shock absorber cushions the assembly in the down position
  • • One moving part, no springs
  • • 3M High Intensity Prismatic sign with protective overlay resists fading, cracking, and peeling
  • • Entire assembly is powder-coated; base plate accepts two spikes or bolts to a tie
  • • Custom signs and other languages available
  • • Add a light with the kit versions: KE-125-K (battery) or KE-125-KS (solar)
  • • Sign and stand made in the USA

Material


  • Post and Base: Powder-coated steel
  • Sign: 3M High Intensity Prismatic (HIP) sheeting with premium protective overlay film
Specifications

Specifications


    • Overall Height: 3 ft 6.5 in (42.5 in)
    • Sign Size: 12 in × 12 in
    • Sign Sheeting: 3M High Intensity Prismatic (HIP) with protective overlay
    • Post Material: Powder-coated steel
    • Mounting: Permanent; base plate accepts two spikes or bolts to a tie
    • Hinged: Yes, with rear shock absorber
    • Color: Blue
    • Light: Not included
    • Weight: 10 lb
    • Chain: Optional (KE-125CHAIN)
