M900-SB

Bi-directional Solar Barricade Light — 180 hr Runtime, IP64, Tilt Switch, 4-Day Autonomy

Color Blue
Amber
Amber
Blue
Blue
Red
Red

Color:

Amber
Blue
Red

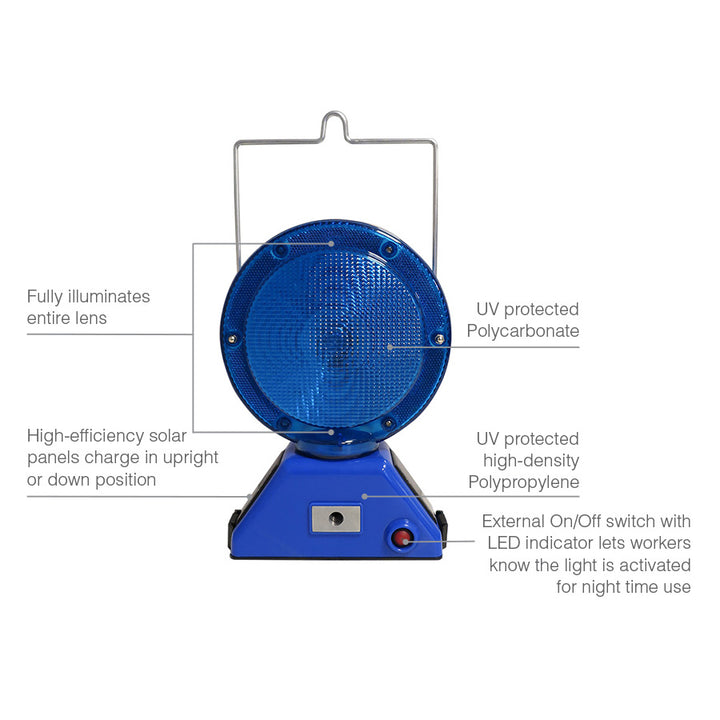

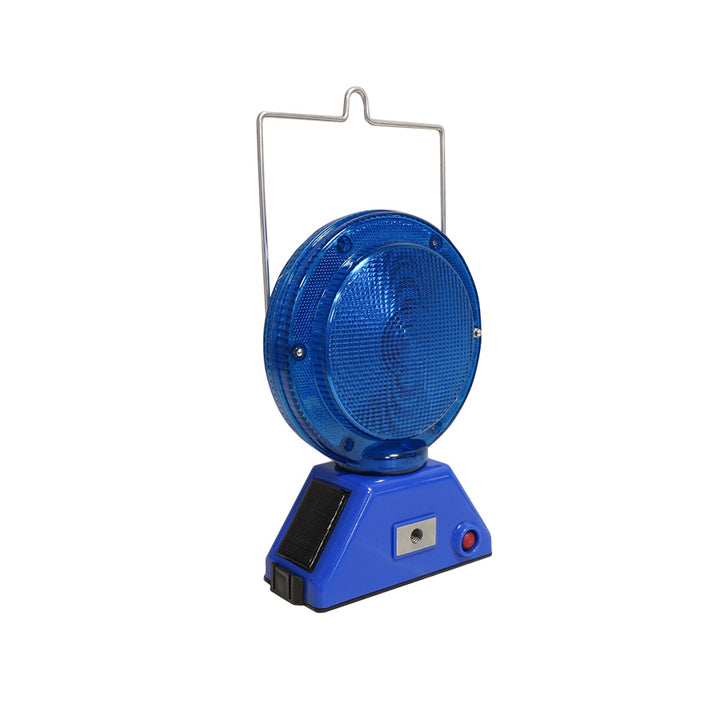

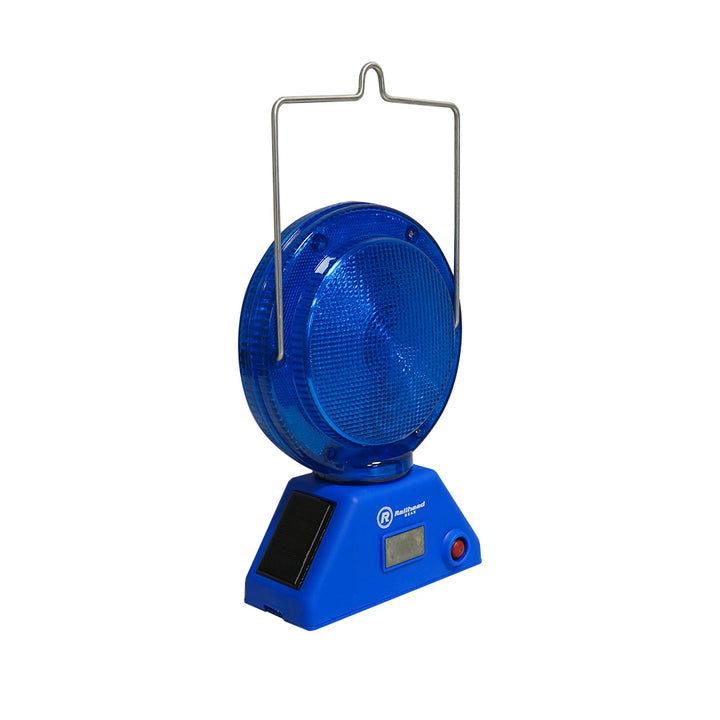

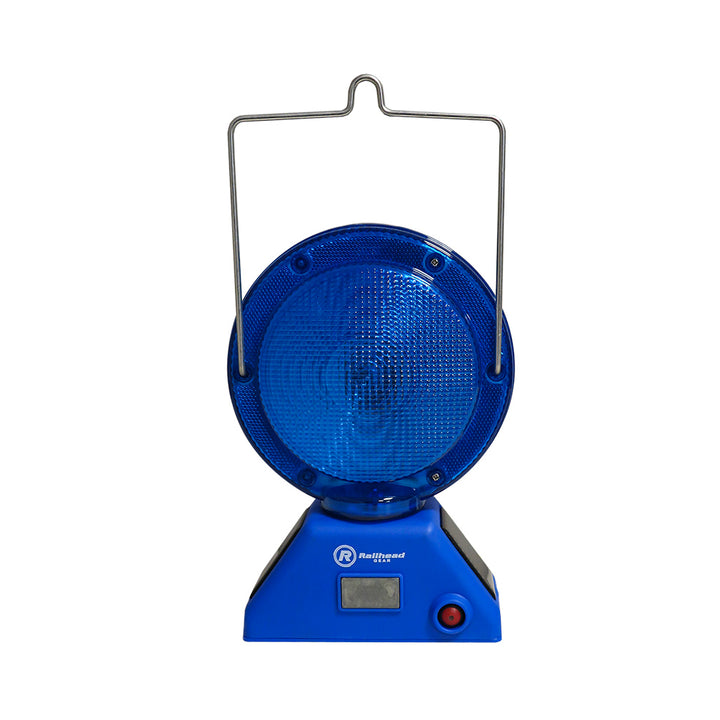

The M900-S is a bi-directional solar barricade light and Railhead's most efficient solar unit, yielding up to four days of illumination from a single hour of charging, with an advanced LED optic lens that lifts output 30 percent and illuminates the entire lens face rather than a hot spot, a photocell that brings it on at dusk and off at dawn, and an internal tilt switch that shuts the light off in the down position so a hinged blue flag laid flat neither burns charge nor signals a protection that has been lifted, built from a UV-protected polycarbonate lens and UV-protected polypropylene body over a replaceable lithium-ion cell. Available as M900-SB or M900-SA.

Best use case: Best for solar-powered warning signs, rail work zones, crossings, construction barricades, utility sites, and fixed industrial hazards, using a large illuminated warning face with flashing, photocell, and tilt-switch activation.

Additional Information

Features


  • • One hour of solar charging yields up to four days of illumination — our most efficient solar light
  • • 180 hr (7.5 days) on a full charge, and significantly longer running nights only
  • • LED optic lens lifts output 30% and illuminates the entire lens face, not just a center hot spot
  • • Internal tilt switch shuts the light off automatically in the down position
  • • Photocell activates at dusk and shuts off at dawn

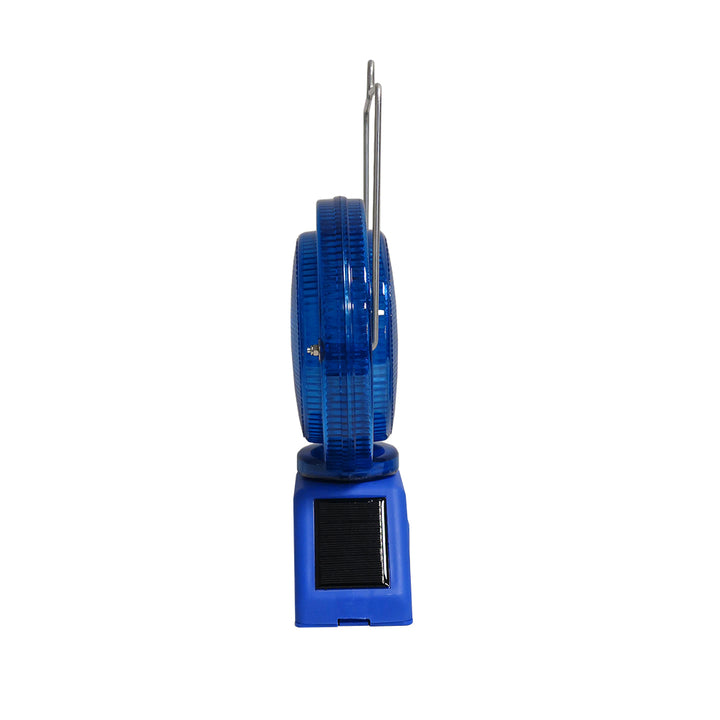

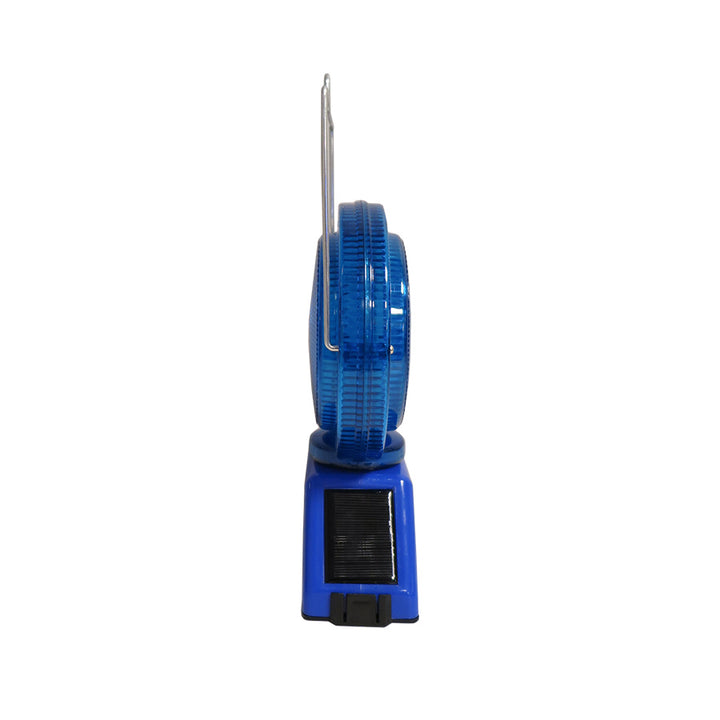

  • • Solar panels charge in the upright or down position
  • • Replaceable high-efficiency lithium-ion battery

Material


  • Lens: UV-protected polycarbonate
  • Body: UV-protected high-density polypropylene
Specifications

Specifications


    • Light Source: 2 LEDs
    • Modes: Single flash
    • Run Time: 180 hr (7.5 days) on a full charge
    • Autonomy: Up to 4 days from 1 hr of solar charging
    • Photocell: Integrated (dusk on / dawn off)
    • Tilt Switch: Internal, shuts off in the down position
    • Ingress Protection: IP64 (water-resistant)
    • Impact: Drop-resistant to 3.3 ft (1 m)
    • Dimensions (H × L × W): 13.8 in × 8.1 in × 3.1 in
    • Weight: 1.3 lb
    • Color: Blue (M900-SB) / Amber (M900-SA)
    • Magnet: Yes

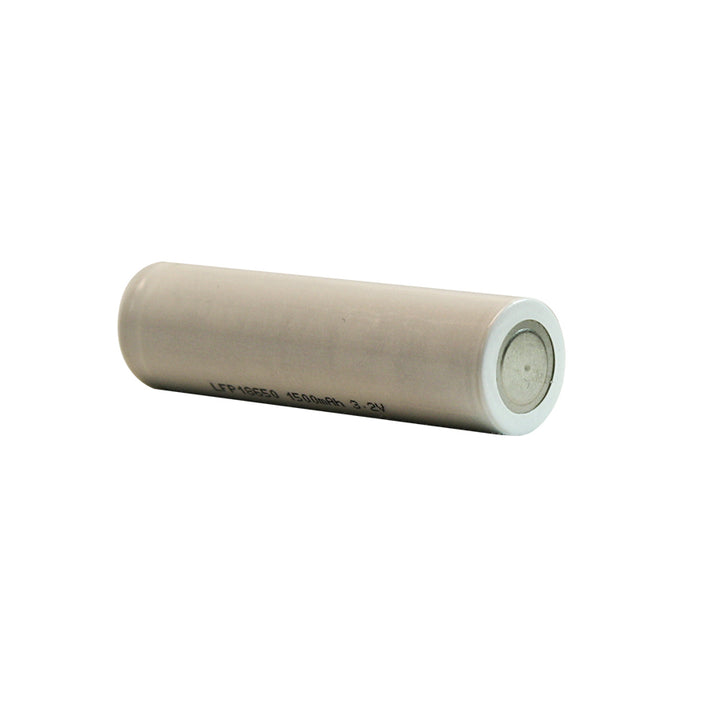

    • Battery: Li-ion rechargeable (included, replaceable)
