RH-524XL

Large Amber LED Light Bar

PROBLEM
Personnel can overlook a working vehicle in a busy industrial area, while permanently installed warning lights limit flexibility across a fleet.

RAILHEAD ADVANTAGE

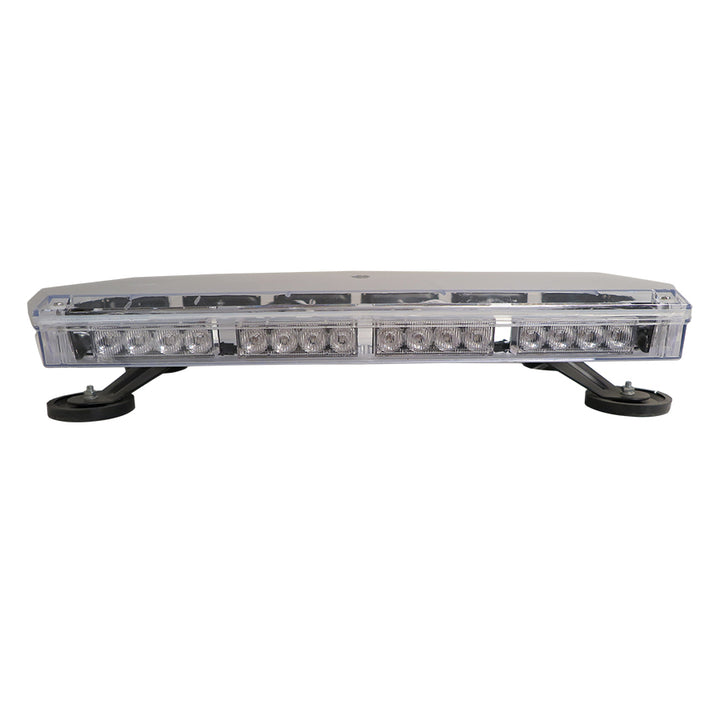

The RH-524XL combines 56 LEDs, eight flashing patterns and magnetic mounting in a large amber light bar. A 9.8-foot straight cord with a 12V adapter and dual switch supports setup on a compatible vehicle.

CUSTOMER IMPACT
Adds a conspicuous equipment warning and supports moving the light between vehicles as work needs change.

Additional Information

Features


  • • Amber LED warning light bar
  • • Eight flashing patterns
  • • IP66 rated
  • • Four magnets arranged in two sets; 80 lb total pull claim

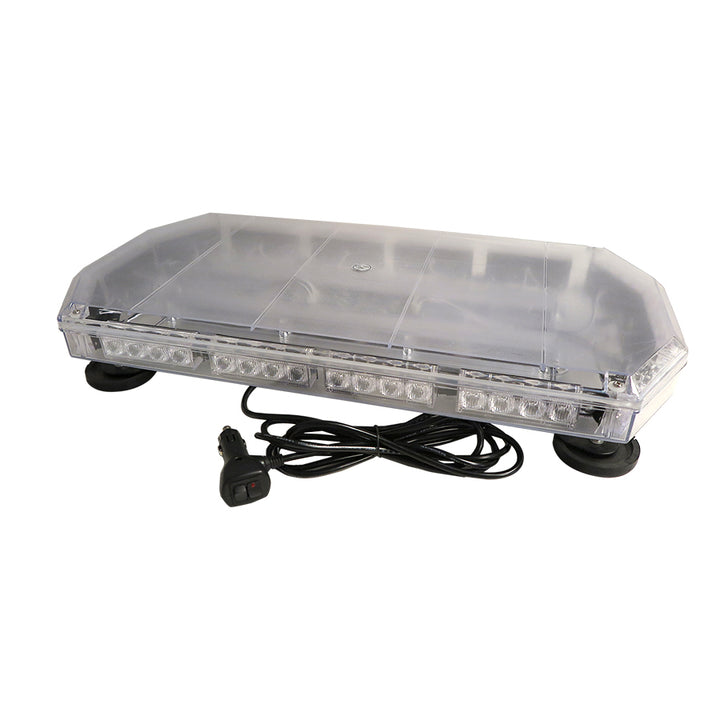

  • • 9.8-foot straight cord with 12V adapter and dual switch

Material


  • Aluminum and polycarbonate construction
  • clear lens with amber LEDs. Bunny confirmed this construction.
Specifications

Specifications


    • Light input: 12–24 V DC, confirmed by Bunny
    • Light source: 56 LEDs rated at 1W each
    • Flash patterns: eight
    • Operating temperature: −4 to +122 °F

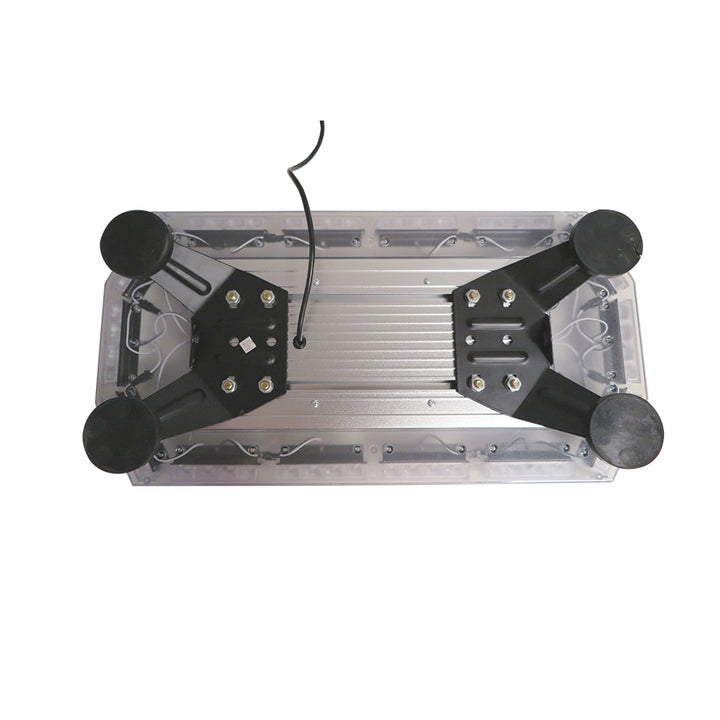

    • Mounting: two sets of magnets (four magnets shown)
    • Total magnetic pull: 80 lb, manufacturer claim
    • Actual input current and measured power draw: not supplied.
    • Cable/lead: 3 m (9.84 ft) straight cord with dual switch.
    • Housing/lens: aluminum and polycarbonate / clear lens (Bunny confirmation).
