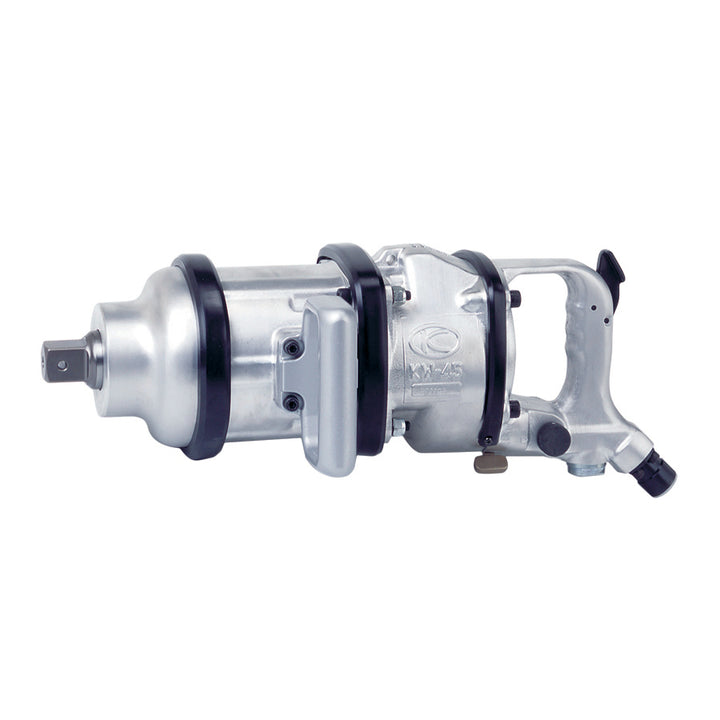

1" Sq. Dr. Spade Hdl Impact Wrench (KW-45G)
2504B/KW-45G

1" Sq. Dr. Spade Hdl Impact Wrench (KW-45G)

All of our tools have a limited one-year warranty. Guaranteed parts availability, quick turnaround on all repairs as a result of repairs done in-house.
Additional Information

Features


  • Don’t let the price fool you - great quality tool up to 50% less expensive than competing tools
  • Big and powerful, Six Vane Air Motor produces 2400 ft. lbs of torque
  • Proven reliability and durability and one of the best values on the market
  • Thru-hole motor housing – an excellent choice for production lines and use with tool balancers
  • Built-in Oil Reservoir ensures constant lubrication of motor
  • D-grip side handle and spade style dead handle for extra leverage
  • Built-in four-position Air Regulator controls torque in forward or reverse
  • Few moving parts with three-piece housing make repairs easy and reduce maintenance costs
  • Protective bumper guards

Material


  • N/A
Specifications

Specifications


    • Standard Bolt Capacity: 1 3/4"
    • Max Torque (ft lbs): 2,400
    • Recommended Torque (ft lbs): 365-2,000
    • Speed (RPM): 3,000
    • Impacts per Min.: 600
    • Weight: 33.75 (lbs)
    • Length: 16 5/16"
    • Avg. Air Consumption (CFM): 13.5
    • Recomm. Hose Size: 1/2"
    • Air Inlet N.P.T.: 1/2"
    • Sound db(A): 96
