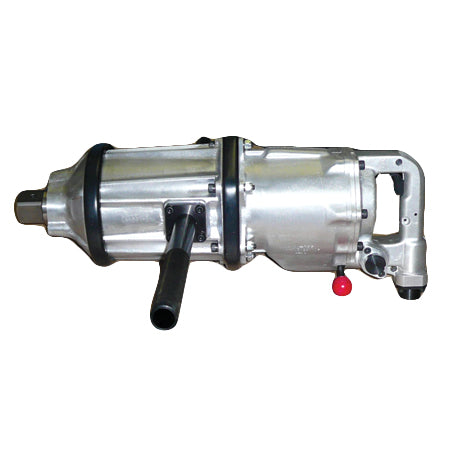

1-1/2" Sq. Dr. Spade Handle Imp. Wrench
2520/KW-75F

1-1/2" Sq. Dr. Spade Handle Imp. Wrench

All of our tools have a limited one-year warranty. Guaranteed parts availability, quick turnaround on all repairs as a result of repairs done in-house.
Additional Information

Features


  • One of the best values on the market with proven reliability and durability
  • Big and powerful, 6 vane air motor produces 6200 ft. lbs. of torque
  • Built-in Oil Reservoir ensures automatic lubrication of motor
  • Grease Screw for easy servicing
  • Built-in 4 position Air Regulator controls torque in forward or reverse
  • Protective bumper guards

Material


  • N/A
Specifications

Specifications


    • Standard Bolt Capacity: 3"
    • Max Torque (ft lbs): 6,200
    • Recommended Torque (ft lbs): 1,095-4,600
    • Speed (RPM): 2,000
    • Impacts per Min.: 450
    • Weight: 76 lbs
    • Length: 25 5/8"
    • Avg. Air Consumption (CFM): 17.5
    • Recomm. Hose Size: 1/2"
    • Air Inlet N.P.T.: 3/4"
    • Sound db(A): 91
