Headlamps

RH-HL800R

800 LUMENS RECHARGEABLE DUAL BEAM INDUSTRIAL HEADLAMP WITH SMART SWITCH

Additional Information

Features

Dual Beam with SPOT & WIDE reflector deliver outstanding light performance for various environments
Smooth Dimmer offers a flexible setup between high brightness and extended runtime from HIGH to LOW power
Safety Keylock button switch lock prevents accidental power loss during storage and traveling
Water-resistant IPX4 rated
3.2 ft drop tested

Operations:

Short Press → High Power SPOT > High Power FLOOD > High Power ALL > OFF
Dimming → Hold Power button while on to control brightness level 100% – 5%
“Keylock”: Long press any button for 2 sec when Off

Kit Includes:

800mAh Li-Polymer Rechargeable Pack

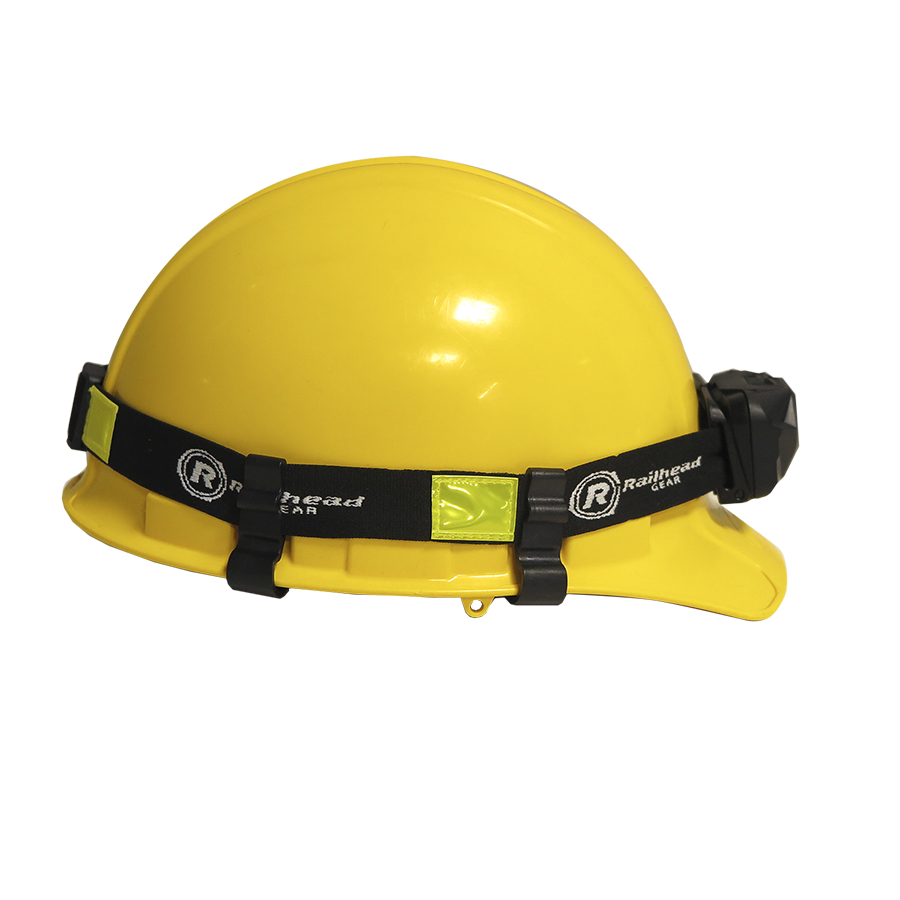

Hard Hat Clips (4 Pack KE-HHC)

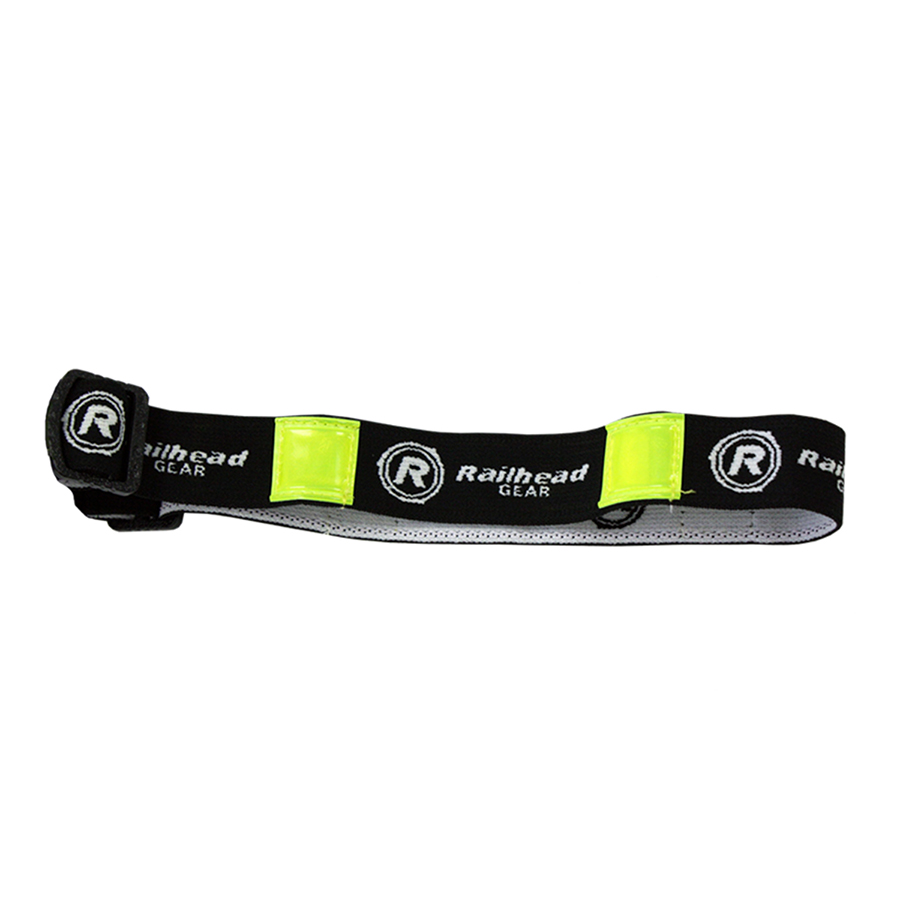

Adjustable Strap with 3MReflective Material(HL-Strap)
Industrial Grade Velcro (for direct mount to helmet)

Specifications

Case Material: High impact ABS
Size L x W x H: 2.3” x 1.8” x 1.4”
Light Source: High Power (Cool-White) x 2
Brightness SPOT: H: 800 lm / L: 25 lm
Brightness FLOOD: H: 260 lm / L: 20 lm
Brightness COMBO: H: 600 lm / L: 50 lm
Run Time SPOT: H: 1.5 h / L: 11 h
Run Time FLOOD: H: 1.75 h / L: 11 h
Run Time COMBO: H: 1.25 h / L: 9 h
Beam Distance SPOT: H: 550 ft / L: 131 ft
Beam Distance FLOOD: H: 173 ft / L: 39 ft
Beam Distance COMBO: 479 ft / L: 115 ft
Battery Type: 800mAH Li-Polymer
Battery Included: Yes

Download Documents

RH-HL800R_Leaflet_20230829-1.pdf
