Feature:

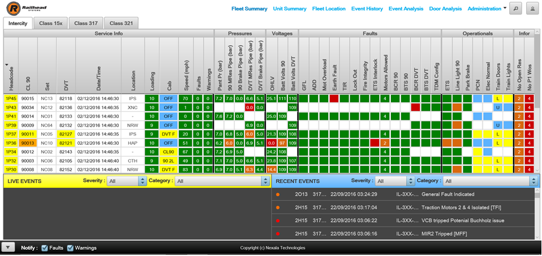

Railhead combines the latest in systems integration, GPS, HD video, imaging, and scanning technologies
with customized software and wireless communication.The Railhead FWT system combines back-office software and on-train equipment to alert a deviation from normal for any data channels. Data channels are received from onboard hardware such as Event Recorders, Fuel Systems, Cab / Brake Controllers. The channels are gathered in real-time, enabling an effective condition-based maintenance platform. The system also communicates with the maintenance shops in real-time, which allows for efficient fault diagnostics and work schedules by the mechanical department. Furthermore, analyzing irregularities of individual components and their behavior across the entire fleet allows for more intelligent preventive maintenance.
Feature:
Solid State Storage Device
Railhead System’s Solid-State Drives provide the rugged crashworthiness that is required for the Rail Industry. The drive's storage capacity ranges up to 4TB (RVS-4TB-SSD-LDVR4K).
Specifications
Solid State Storage Modules- Up to 4TB Solid State available
- Increases the rating for Shock, Vibrations, and Temperature
Proprietary Storage Module
- Unique connector for increased security
- Exclusive communication interface
Feature:
Completely digital, the Locomotive DVR (LDVR)4K system delivers the clearest, highest quality video and optimal network performance, but is made for the rigors of the locomotive environment. Supporting PoE megapixel and analog cameras, the LDVR4K, High Definition IP System provides the most user-friendly and technologically advanced solution for video surveillance in any locomotive application.
Optimal Quality Recording:
Provides the perfect balance of high-definition recording and long-term storage. A high definition and long-term video stream is recorded simultaneously ensuring the highest quality video is available for critical incidents while maintaining the longest onboard recording duration. Completely adjustable and customizable to your recording needs - a slider bar automatically calculates estimated storage for both High Quality and Long-Term Recording streams.Designed specifically for use in mass rail and transit applications, the steel-constructed LDVR4K Mobile Video Recorder is Mil-Spec and SAE rated for proven durability and reliability in harsh mobile environments. The LDVR4K System is easy to use and install, provides superior ultra-high definition video quality, and delivers years of reliable operation with the lowest cost of ownership. With support for PoE megapixel and analog cameras, the LDVR4K systems support up to 12 cameras and 14 audio inputs.
Feature:
Our hard drive reader is used when the drive is removed from the unit to view at their desk. The reader will come equipped with a power cable, docking station, and all necessary adapters to enable users to view the drive on their computer or laptop. The reader will utilize the license-free RSM Software for video/data playback.
- Used in office for playback of pulled drives
- Accident investigation
- Equipped with
- Power cable
- Docking station
- Easy connection to computer or laptop
- The reader will utilize the license-free RSM Software for video/data playback.
Feature:

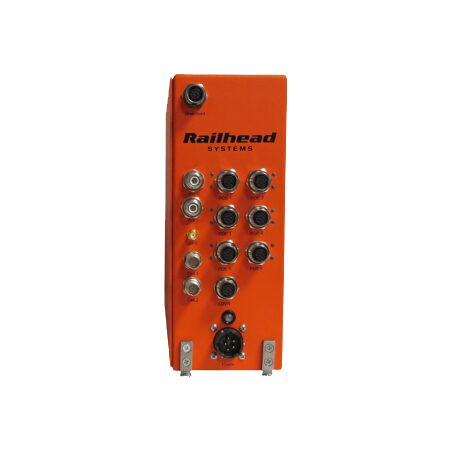

The FWT-RR-POE (Fleet Wide Tracker Rail Router) is the backbone of the onboard monitoring solution. It is designed to be scalable, modular, and expandable all while providing reliable high-speed 4G/LTE broadband and Wi-Fi communications for consolidated connectivity on all onboard devices. Rugged and reliable, the FWT is designed and manufactured specifically for mobile applications and features enterprise-grade security and management. The FWT provides remote access to video, audio, system, and event logs. It is provisioned to be easily updated for additional capabilities such as engine controller integration, fuel integration, as well as back-office monitoring.
Specifications
- The backbone of the onboard monitoring solution
- Rugged, powder-coated steel construction
- LSI Rack Mountable
- High-Speed Performance with all Major Networks
- 3G/4G/ LTE Wireless networks
- 802.11 (a/b/g/n/ac) WIFI
- POE for single wire module installs
- Provisioned to add additional POE switches for an increased number of modules
- Remote Software Updates
- Mil-Spec, AAR, and SAE rated
- Designed and manufactured specifically for freight/passenger locomotives, and heavy-duty track vehicles
Scalable – Modular – Expandable
Feature:
Protocol Translator Module
- Provides the ability to communicate with on-board locomotive systems.
- The LARI adapts communications from serial RS232, RS422, and RS485 to Ethernet and can perform data translations to support interconnection with multiple on-board systems.
- The LARI can send and receive data such as:
- time and date information
- locomotive performance data
- engine data, GPS location information
- event recorder data
- accelerometer data and more
Feature:

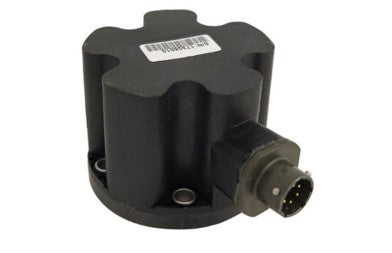

Fuel Monitoring
Railhead is offering our fuel sensor to provide fuel level data to the remote monitoring system for display in the back office. The Fuel Sensor utilizes a single cable installation; only need to connect one cable to the Rail Router which provides data and power. The fuel volume level will then be recorded directly to the hard drive and can also be utilized for business rules. The fuel sensor can be mounted easily on a wide variety of fuel tanks. No cutting, welding or machining of the tank is required. This minimizes the amount of installation time required for mounting the sensor on the tank.
Features:
- Fuel Accuracy +/- 50 Gallons
- Easy to install securely on top of tank – No Cutting, Welding or tank modification required
- Operating Temperature – 40C to 80C
SPECIFICATIONS
- Direct Interface to the Railhead FWT
- Simple mounting for retrofits
- The fuel sensor is designed to meet the fuel detection requirements of a diesel tank.
- Solid State Ultra Sonic Technology
- Fuel Accuracy /- 1% fuel tank capacity
- Operating Temperature – 40C to 85C
- Provides
- Fuel Level
- Refuel History
- Fuel Loss Detection
- Fleet Fuel Inventory
Feature:
Railhead’s FWT antenna contains five separate antennas, all in one compact antenna housing: two broadband LTE/Cellular antennas, two dual-band WiFi antennas, and one GPS antenna. The
broadband LET/Cellular element covers all LTE frequencies worldwide, from 694-3700 MHz.MIMO (multiple-input-multiple-output) modems offer greater speed and capacity than earlier generations of modems. They achieve this by sending RF signals on multiple antenna elements to maximize the amount of information transmitted and received. To ensure optimum performance, the systems need multiple antennas on both the transmission and receive ends.
With 5-elements, the antenna is ideal for fleet management systems that combine GPS with our FWT modem.
Measuring 5.5” (140mm) in diameter with a low profile of 2.38” (60.4mm), 5.5” (140mm) x 2.78” (70.6mm) the antennas take up significantly less space than multiple antennas and cut down on installation time and costs by offering a single mounting hole.
Feature:
Crash-Hardened Memory Module (CHMM) with Multiple Storage Options
The Railhead Crash-Hardened Memory Module (CHMM) or Audio and Image Recording System Memory Module, is a passenger and freight rail-ready platform that meets both FRA and IEEE industry standards for Event Recorder crash-worthy memory (ERMM). The Railhead CHMM is designed to withstand even the most severe impacts and temperature extremes. Available with different levels of storage capacity and mounting options to fit any cab car or locomotive. Set up is easy with a single cable that plugs into a front-panel port on the Railhead LDVR4K recorder. Our advanced technology manages data anomalies and improves data consistency to reduce write operations and optimize SSD speed and lifespan.
