Railhead Systems

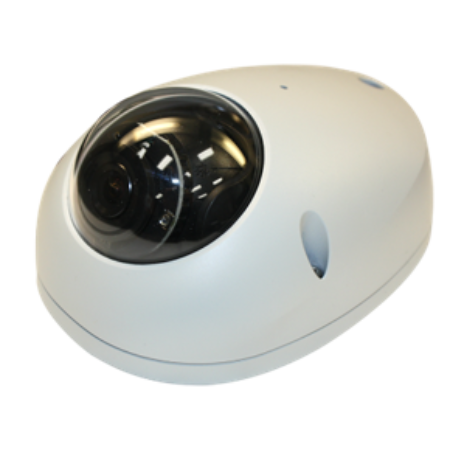

Dome Camera -HD

Railhead was the first in the North American Market to record audio and video in the cab of the locomotive.  Our Low Profile Inward Facing Cameras are a leader in the market for capturing in cab activities in both day and night settings. Whether you want to capture the face of the engineer or clearly capture the control stand, our team will work with you to optimize resolution and frame rates. These cameras are designed to hold up to the rugged rail environment in both the cab and passenger compartments of rail equipment

Auto Connect and Configuration

Additional Information


  • Ruggedized for rail environment
  • Impact, Vandal Resistant, and Tamper- Proof


  • Audio Recording: Yes
  • Low-Light: Yes
  • Vandal-Resistant: Yes
  • High Resolution, PoE: Yes
  • Auto-Connect: Yes
  • Varifocal Lens: No
  • Resolution: F-HD (1920 x 1080), HD (1280 x 720), W-D1 (864 x 480), QHD (640 x 360), W-CIF (432 x 240)
  • Field of View (FOV): Available in 85 Degree, 100 Degree, 115 Degree
  • Min. Illumination(Color): 0.07 Lux @ F 2.0
  • Min. Illumination (B&W): 0 Lux @ F 2.0
  • S/N Ratio: 31.2dB
  • CCD: 1/2.9" CMOS
  • Dimension (WxHxD): 3.94" x 2.58" x 5.50"
  • Additional Features: IP66 Rated, Automatic IR Cut Filter
